GYFTY53 Outdoor armored Fiber Optical Cable – High-Performance Waterproof & Pressure-Resistant Direct Buried cable
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cablewatertight:
Single Fiber Reinforced Plastic as the central strength member
Loose tube filling compound
100% cable core filling
PSP enhancing moisture-proof
Water-blocking material
what is GYFTY53 fiber optic cable
GYFTY53 is a non-metallic strength member, dual PE-sheathed, corrugated steel tape armored fiber optic cable designed for direct burial, offering excellent resistance to electromagnetic interference, moisture, and rodent attacks.
GYFTY53 Armored Cable Specification
- Specification
- Product Technical Parameters
- OPTICAL CHARACTERISTICS
| cable type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight Kg/km | (N) Tensile strength (Short-term) | (N) Tensile strength (Long-term) | (N/100mm) Crush strength (Short-term) | (N/100mm) Crush strength (Long-term) | (mm) Bending radius (During Installation) | (mm) Bending radius (After Installation) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GYFTY53-2-6 | 2-6 | 1 | 7 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-4-12 | 6-12 | 2 | 6 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-14-18 | 14-18 | 3 | 5 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-20-24 | 20-24 | 4 | 4 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-26-30 | 26-30 | 5 | 3 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-32-36 | 32-38 | 6 | 2 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-38-42 | 38-42 | 7 | 1 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-44-48 | 44-48 | 8 | 0 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-50-60 | 50-60 | 5 | 3 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-62-72 | 62-72 | 6 | 2 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-74-84 | 74-84 | 7 | 1 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-86-96 | 86-96 | 8 | 0 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-98-108 | 98-108 | 9 | 1 | 19.2 | 320 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-110-120 | 110-120 | 10 | 0 | 19.2 | 320 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-122-132 | 122-132 | 11 | 1 | 21.2 | 360 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-134-144 | 134-144 | 12 | 0 | 21.2 | 360 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| cable type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight Kg/km | (N) Tensile strength (Short-term) | (N) Tensile strength (Long-term) | (N/100mm) Crush strength (Short-term) | (N/100mm) Crush strength (Long-term) | (mm) Bending radius (During Installation) | (mm) Bending radius (After Installation) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GYFTY53-2-6 | 2-6 | 1 | 7 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-4-12 | 6-12 | 2 | 6 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-14-18 | 14-18 | 3 | 5 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-20-24 | 20-24 | 4 | 4 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-26-30 | 26-30 | 5 | 3 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-32-36 | 32-38 | 6 | 2 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-38-42 | 38-42 | 7 | 1 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-44-48 | 44-48 | 8 | 0 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-50-60 | 50-60 | 5 | 3 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-62-72 | 62-72 | 6 | 2 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-74-84 | 74-84 | 7 | 1 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-86-96 | 86-96 | 8 | 0 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-98-108 | 98-108 | 9 | 1 | 19.2 | 320 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-110-120 | 110-120 | 10 | 0 | 19.2 | 320 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-122-132 | 122-132 | 11 | 1 | 21.2 | 360 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-134-144 | 134-144 | 12 | 0 | 21.2 | 360 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| cable type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight Kg/km | (N) Tensile strength (Short-term) | (N) Tensile strength (Long-term) | (N/100mm) Crush strength (Short-term) | (N/100mm) Crush strength (Long-term) | (mm) Bending radius (During Installation) | (mm) Bending radius (After Installation) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GYFTY53-2-6 | 2-6 | 1 | 7 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-4-12 | 6-12 | 2 | 6 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-14-18 | 14-18 | 3 | 5 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-20-24 | 20-24 | 4 | 4 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-26-30 | 26-30 | 5 | 3 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-32-36 | 32-38 | 6 | 2 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-38-42 | 38-42 | 7 | 1 | 15.8 | 226 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-44-48 | 44-48 | 8 | 0 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-50-60 | 50-60 | 5 | 3 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-62-72 | 62-72 | 6 | 2 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-74-84 | 74-84 | 7 | 1 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-86-96 | 86-96 | 8 | 0 | 16.8 | 225 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-98-108 | 98-108 | 9 | 1 | 19.2 | 320 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-110-120 | 110-120 | 10 | 0 | 19.2 | 320 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-122-132 | 122-132 | 11 | 1 | 21.2 | 360 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |
| GYFTY53-134-144 | 134-144 | 12 | 0 | 21.2 | 360 | 1000 | 3000 | 1000 | 3000 | 100 | 20D |

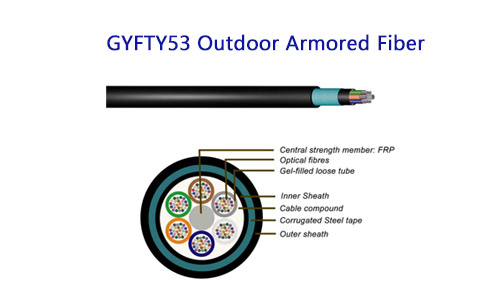

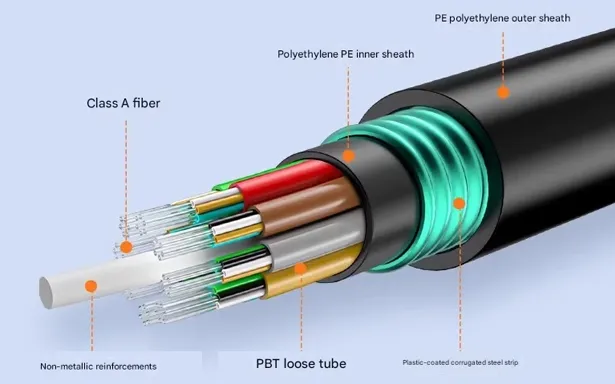

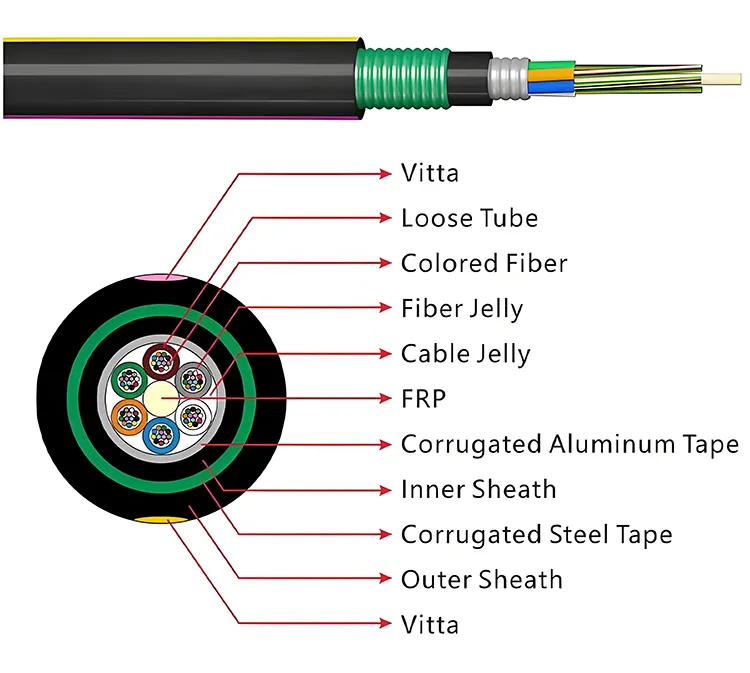

Product Structure & Composition
Central strength member: A non-metallic FRP (Fiber Reinforced Plastic) rod.
Loose tubes: Placed around the central strength member, each tube contains 250 μm colored fibers filled with water-resistant fiber jelly.
Cable core filling: The interstices between tubes are filled with cable jelly, and a water-blocking material is wrapped around the core to ensure full water resistance.
Inner sheath: A thin Polyethylene (PE) inner sheath applied over the cable core, also filled with jelly‑like compound for water protection.
Corrugated aluminum tape (from the image): Wrapped around the inner sheath to enhance moisture-proofing.
Water-blocking material (from the text): Applied further to prevent water ingress.
Corrugated steel tape armor: Provides crush resistance and rodent protection.
Outer sheath: A final PE outer sheath completing the cable.
GYFTY53 Armored Cable Product Features
Excellent mechanical & temperature performance
includes good mechanical strength, high crush resistance, flexibility, and reliable operation across a wide temperature range.
Superior fiber protection
features high‑strength, hydrolysis‑resistant loose tubes combined with a special tube filling compound that provides critical protection for the optical fibers.
Structural watertight design
employs a single FRP central strength member and 100% cable core filling to prevent water ingress at the core level.

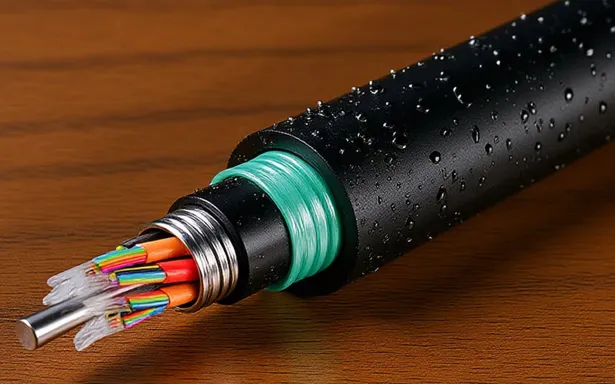

Enhanced moisture‑proof barrier
utilizes PSP (Plastic‑Steel‑Plastic) moisture‑proof enhancement plus additional water‑blocking material for comprehensive, dual‑layer water resistance.
Engineering Applications GYFTY53 Armored Cable

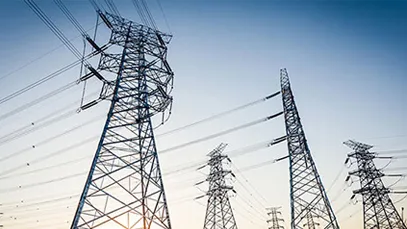

1. Aerial Installation
Installed on telephone poles or power towers. The FRP non-metallic strength member ensures stable signal in high EMI environments; dual sheathing + steel tape armor resists wind vibration and impacts.

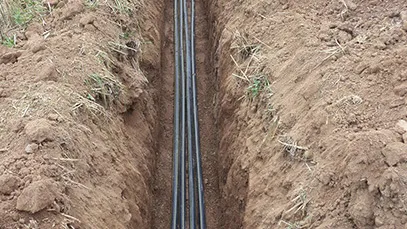

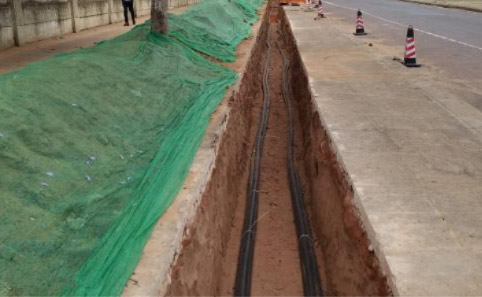

2. Direct Burial
Buried directly in trenches with warning tape. Steel tape armor + double PE sheaths provide excellent moisture resistance, crush resistance, rodent protection, and chemical resistance.

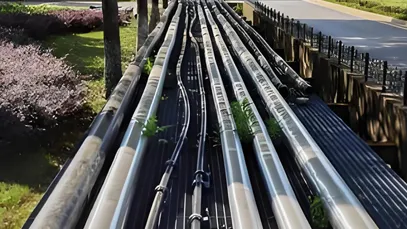

3. Duct Installation
Pulled through pre-installed conduits or tunnels. The armored structure protects against abrasion and rodent bites; full-core water blocking adapts to wet duct environments.

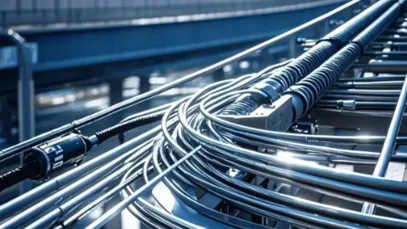

4. High‑Voltage & Lightning‑Prone Areas
Used in substations, high‑voltage corridors, and frequent lightning zones. The all‑dielectric (FRP) central member eliminates conductive parts, preventing induced currents and lightning damage.
Download YRTFIBER Product Catalog

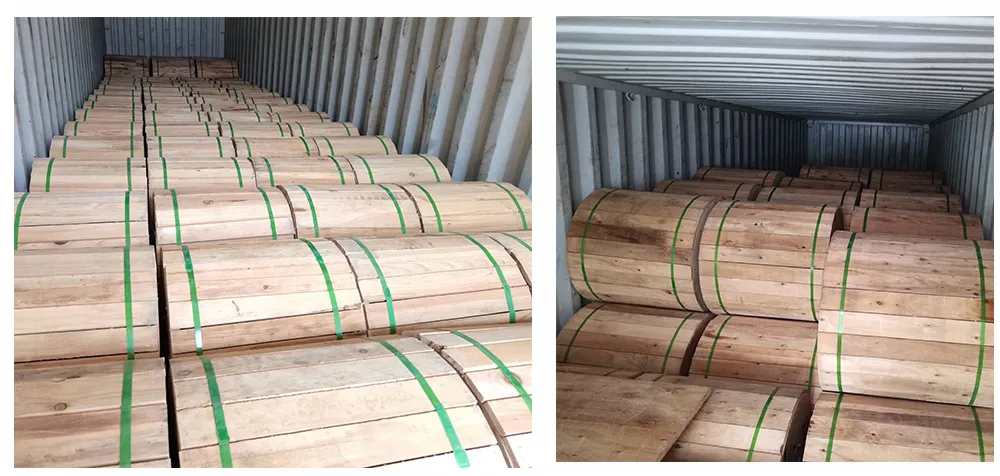

Shipping & Packaging
Packaging Requirements:
Packaging Requirements:
1：All cables shall be wound on treated wooden spools that are not returnable
2：Cable ends must be firmly secured to the spool and protected with waterproof shrink caps
3：Each spool must include:
1、 Protective plastic wrapping layer
2、 Reinforcing wooden slats for stability
3、 Minimum 1m of free cable end for testing purposes
4、 Standard spool length: 3000mm (±2% tolerance allowed)

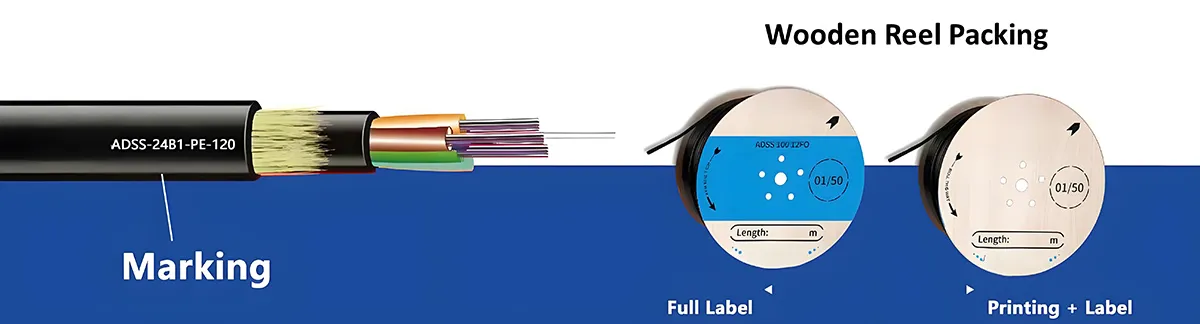

Cable Identification:
The outer jacket must display:
1、Unique sequential numbering every 1m (±1% variance permitted)
2、 Additional repeating markings at 1m intervals showing:
1、 Product code and fiber count
2、 Manufacturer identification
3、 Production date (month/year)
4、Total cable length
Standard Packaging Dimensions:
| Length | Container | Size (L×W×H) | Net Mass | Total Mass |
|---|---|---|---|---|
| 2 km | Wood spool | 90×75×90 cm | 156 kg | 220 kg |
| 3 km | Wood spool | 100×68×100 cm | 240 kg | 280 kg |
| 4 km | Wood spool | 109×75×109 cm | 300 kg | 368 kg |
| 5 km | Wood spool | 129×72×129 cm | 400 kg | 480 kg |
Technical Reference:
1、 Standard cable diameter: 10.0mm
2、Maximum span distance: 100m
3、Contact sales team for complete technical specifications

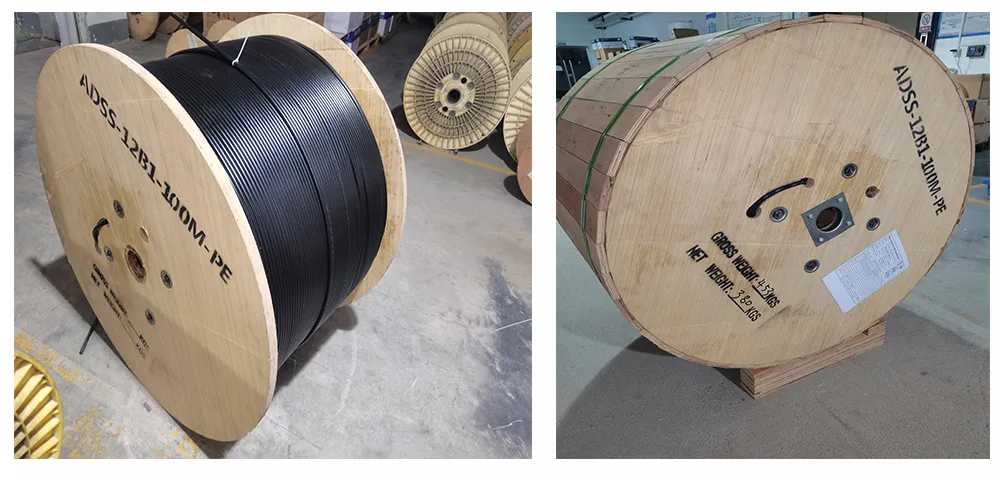

Spool Marking Standards:
Permanent markings (minimum 25-30mm height) must appear on both sides of each spool:
1、 Company name and trademark
2、Contained cable length
3、Cable specifications (type/fiber count)
4、Winding orientation
5、Weight measurements (gross/net)
Note: All wooden packaging materials must undergo proper fumigation treatment prior to use.
Product Comparison：
GYFTY53 VS GYTA53 VS GYFTA53
| Comparison Dimension | GYFTY53 | GYTA53 | GYFTA53 |
|---|---|---|---|
| 1. Structure & Strength Member | Non-metallic strength member (FRP central rod), no metal components | Metallic strength member (central phosphor-coated steel wire) | Non-metallic strength member (FRP central rod) |
| 2. Armoring & Sheath | Corrugated steel tape (PSP) + inner PE sheath + outer PE sheath | Corrugated steel tape + laminated aluminum tape + PE sheath | Laminated aluminum tape + inner PE sheath + corrugated steel tape + outer PE sheath |
| 3. Core Function | Full-dielectric cable designed for high EMI / lightning-prone areas, with direct burial strength | Metallic-reinforced cable, excellent moisture protection for direct burial/duct | Non-metallic central member + dual armoring, offers EMI safety plus high mechanical protection |
| 4. Electrical Characteristics | Non-conductive, no grounding needed, immune to EMI, suitable for power systems | Contains metallic strength member – conductive, needs grounding care near high-voltage lines | Central core non-metallic, but steel tape armor makes it partially conductive |
| 5. Water & Moisture Protection | FRP central + tube filling jelly + 100% cable core filling + PSP radial moisture barrier + water-blocking material | Metallic central + tube jelly + full-core water-blocking + aluminum tape + steel tape + water-blocking filler | Aluminum tape + steel tape + tube jelly + full-core water-blocking compound – strongest moisture resistance |
| 6. Application Scenarios | Lightning-prone areas, strong EMI environments (power substations, tunnels), duct/direct burial | General direct burial/duct, high-humidity regions (e.g., wet southern areas) | Extreme environments with lightning, high humidity, and rodent problems – maximum protection |
| 7. Cost | Moderate – FRP costs slightly less than steel wire | Slightly higher due to metallic strength member | Highest – due to multi-layer armoring and complex structure |
| 8. Suitable Voltage Levels | 10kV – 110kV (non-conductive design avoids ground potential rise) | General telecom applications; special EMI protection needed near power lines | Power systems in lightning-prone areas, combining EMI safety with high mechanical strength |
GYFTY53 Armored Cable Selection Guide

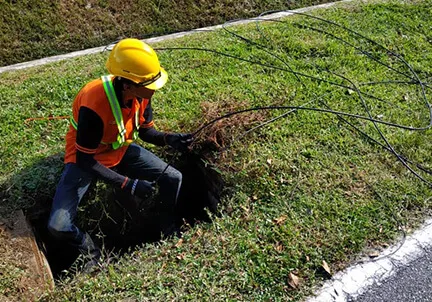

Installation of GYFTY53 Fiber Optic Cable
1.Trench/duct prep – Remove sharp edges, add sand bedding.
2.Pull cable – Max tension 3000N, min bend radius 20× diameter.
3.Backfill – Cover with sand + warning tape.
4.Terminate & test – Splicing closure → attenuation check.
Factory Real Shot

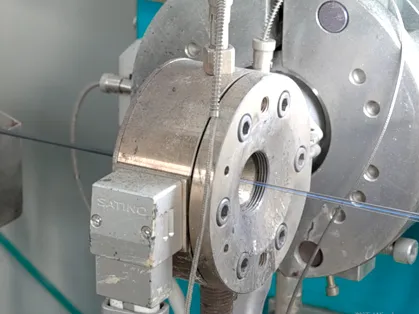

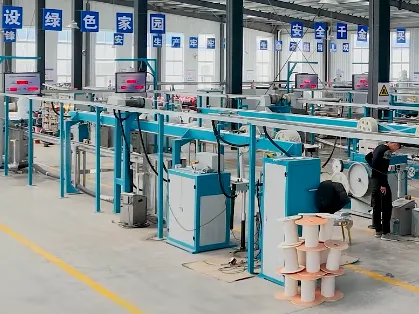

Stranding & Sheathing Line
General view of the cable core assembly zone.
GYFTY53 Manufacturing Plant Overview
A clean and well‑organized production floor.

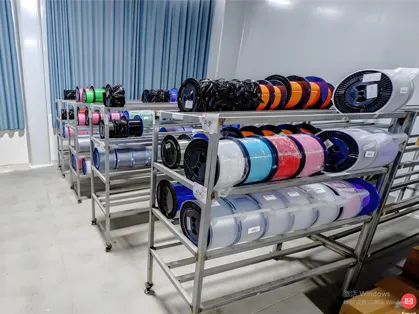

Raw Material Storage
FRP rods, loose tubes, steel tape, and PE compounds.

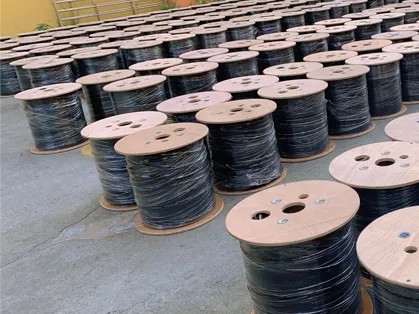

Factory Warehouse & Dispatch
Ready‑to‑ship fiber cable coils awaiting delivery.
Frequently Asked Questions & Quick Inquiry
GYFTY53 Armored Cable FAQ
What is GYFTY53 fiber optic cable and what does its model name mean?
GYFTY53 is an outdoor, non-metallic strength member armored fiber optic cable. The model follows Chinese national standards: G stands for outdoor communication cable, Y for polyethylene (PE) sheath, F for non-metallic strength member (FRP – fiber reinforced plastic), T for filled loose tube stranding, 53 for double sheath structure (inner PE + steel tape armor + outer PE).
What are the typical installation scenarios for GYFTY53 cable?
GYFTY53 is suitable for direct burial, duct, and aerial installations. It is widely used in subways, tunnels, long-haul communications, and inter-office links, especially in high lightning areas, high-voltage transmission corridors, and strong electromagnetic interference environments. Its non-metallic central strength member (FRP) makes it non-conductive, allowing safe aerial use in lightning-prone regions.
What are the key features and advantages of GYFTY53 cable?
Key advantages include: excellent anti-EMI and lightning protection thanks to the non-metallic FRP central member; high crush resistance and water tightness from the double sheath plus steel tape armor (PSP); full-section water-blocking design and special gel-filled loose tubes for superior moisture protection; UV resistance and rodent resistance from dual PE sheaths; and a typical service life of over 30 years.
What are the main technical parameters of GYFTY53 cable?
Technical parameters: operating temperature range -40°C to +70°C; allowable tensile strength – long term 1000N, short term 3000N; crush resistance – long term 1000N/100mm, short term 3000N/100mm; bending radius – static 12.5×cable diameter, dynamic 25×cable diameter; fiber core count from 2 to 144 cores.
What installation precautions should be taken for GYFTY53 cable?
During installation: dynamic bending radius must not be less than 25×cable diameter, static not less than 12.5×cable diameter; short-term pulling force ≤3000N, long-term ≤1000N; installation temperature between -15°C and +60°C; pulling tension ≤1500N, speed ≤15m/min, avoid sharp 90° bends; the armor layer must be grounded at one end with grounding resistance ≤4Ω.
What is the difference between GYFTY53 and other models like GYTA or GYTS?
The main difference lies in armor materials: GYTA uses aluminum tape armor, GYTS uses steel tape armor – both typically require an additional conduit for direct burial. GYFTY53 uses a non-metallic FRP strength member + double-sheath steel tape armor, allowing direct burial without extra conduit. It also offers a wider temperature range (-40°C to +70°C) and is ideal for lightning-prone and high-EMI areas. GYTA53, another double-sheath double-armored model, can also be directly buried but includes metal components.
